Product Information
Πληροφορίες
BH30/804/R (Διαθέσιμο Κατόπιν Παραγγελίας)
Electromechanical BRUSHLESS motor, low voltage, super intensive use, with native encoder onboard, reversible, ideal for sliding gates up to 800kg with built-in digital controller B70 series, magnetic limit switch.
Brushless
Intensive Use
Digital Encoder
Magnetic limit switch
Industrial
Commercial
Condominium
Τεχνικές Προδιαγραφές
| Max gate weight: | 800 kg |
| Power line supply: | 230V AC – 50Hz |
| Motor power supply: | 24V |
| Power rating: | 140W |
| Frequency of use: | Intensive use |
| Thrust: | 60 – 600N |
| Operating temperature: | -20+55°C |
| Protection level: | IP44 |
| Reductor Type: | Reversible |
| Manoeuvre speed: | 18 m/min (0.30 m/s) |
| Limit switch: | Magnetic |
| Onboard control unit: | B70/1DC |
| Encoder: | Digital native encoder + magnetic digital SENSORED, 4096 PPR |
| Batteries recovery: | Optional 2 internal battery 12V 1,2AH – Optional 2 external battery 12V 4,5AH |
| Type exit gear: | Z15/mod 4 |
| Operating cycles per day (opening/closing – 24 hours no stop): | 1000 |
| Maximum dimension product in mm (L x W x H): | 315 x 165,8 x 329 |
| Product weight packed (Kg): | 12,6 |
| Number items per pallet: | 44 |
Διαστάσεις & Predisposition
Dimensions
Standard Αξεσουάρ
KT214 Fixing plate with stay bolts and screws H30 series.
MC775 Kit magnetic limit switch for control unit H70/103AC, H70/104AC, B70/1DC, B70/1DCHP.
Επιπλέον Αξεσουάρ
GA550 Galvanised steel rack 22x22x1000 module 4
GA551 Galvanised steel rack 30x12x1000 module 4 with spacers and screws.
GA554 Pocket of 6 spacers (2,5 cm) and screws.
KT221 Raised fixing plate for H30 series (+3,5 cm).
R99/C/001 Signboard “Automatic Opening”.
KT214/SC Adapter plate with stay bolts and screws H30 series.

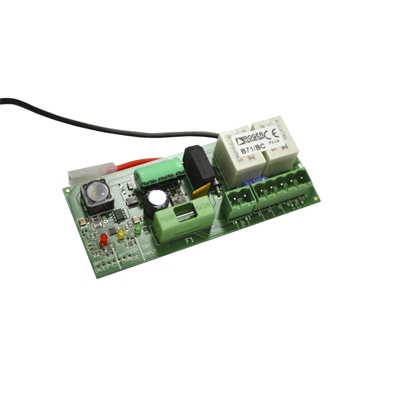

B71/BC Batteries charger for Brushless digital controller B70/1DC

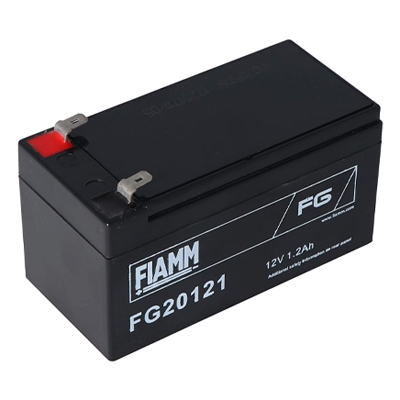

BT12V12 Battery 12V 1.2 Ah (1 pc).

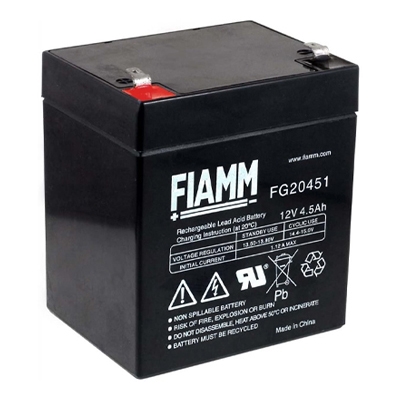

BT12V45 Battery 12V 4.5 Ah (1 pc).
HT418 External box without batteries, for battery BT12V45 (12V DC 4,5 Ah).
KT214/SF Adapter plate with stay bolts and screws H30 series.

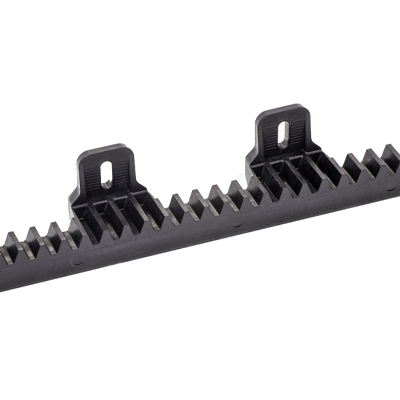

GA557 Roger Technology nylon rack module 4 with 6 connectors L.1000.
KT214/SN Adapter plate with stay bolts and screws H30 series.
LT330 Chain drive kit for H30 – BH30 series.
LT334 1/2″ X 5/16″ 5 meter chain piece for LT330 with joint.
R99/C/001AL Signboard “Automatic Opening” Aluminium version.
B71/PBX24/BOX Hybrid inverter, “Network Assisted” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels or mains supply for powering the 24V DC brushless digital controllers with a mains voltage of 230V AC.

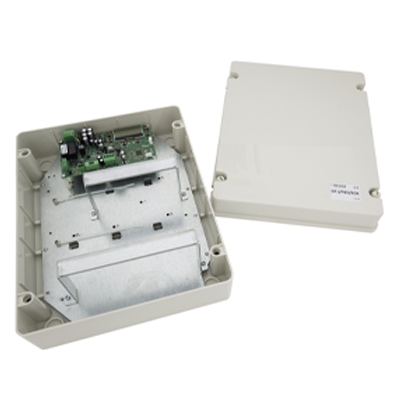

B71/PBX/BOX Hybrid inverter, “Full Solar” version, for powering the automation. Also provides a battery-charger function thanks to the connection to the solar panels for powering the brushless digital controllers.

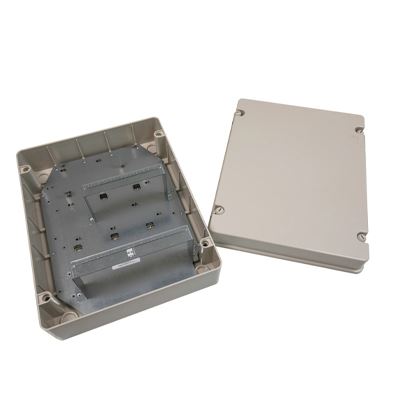

HT421 External box without batteries, for battery BT12V45 (4,5 Ah), BT12V70 (7 Ah) and BT12V120 (12 Ah), up to a maximum of 3 batteries.
