LDKZ D1 - Nadi

Product Information

Category: Κλειδαριές

Πληροφορίες

SURFACE MOUNTED DOUBLE CYLINDER GATE LOCK FOR SWING GATES

High-quality swing gate lock with aluminium housing and stainless steel mechanism with 2 cylinders. You only need to use 1 of the cylinders in order to open or to close the lock. This lock is ideal to provide entry to third parties like firemen or waste collectors. The double locking of the solid stainless steel night bolt ensures a secure closing. For a fast and highly precise installation, we recommend using the Drill-Fix drilling jig.

Διαθέσιμα Χρώματα:

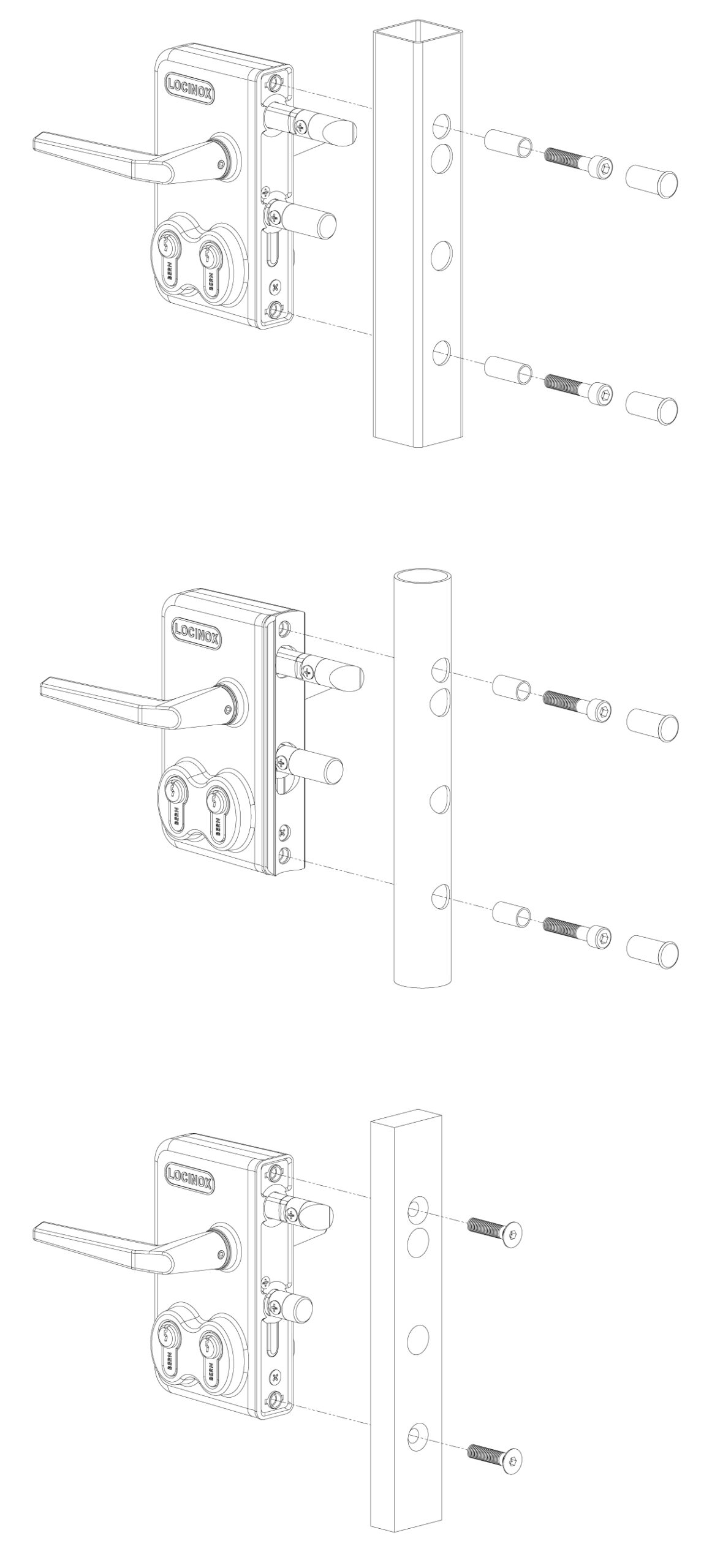

Installation

Σχετικά Προϊόντα:

SAKL-QF

Τεχνικά Χαρακτηριστικά

ISO 9227 KTL / E-coated lock box withstands 1000 hours of salt spray test
For gate profiles from 10 to 100 mm
Stainless steel mechanism
Non-adjustable day and night bolt
Easy left or right changing of the self-latching daybolt
Double throw of the night bolt 23 mm
Key-operated self-latching bolt
4-hole fixing with two hexagon socket head screws
Interchangeable with all Locinox locks

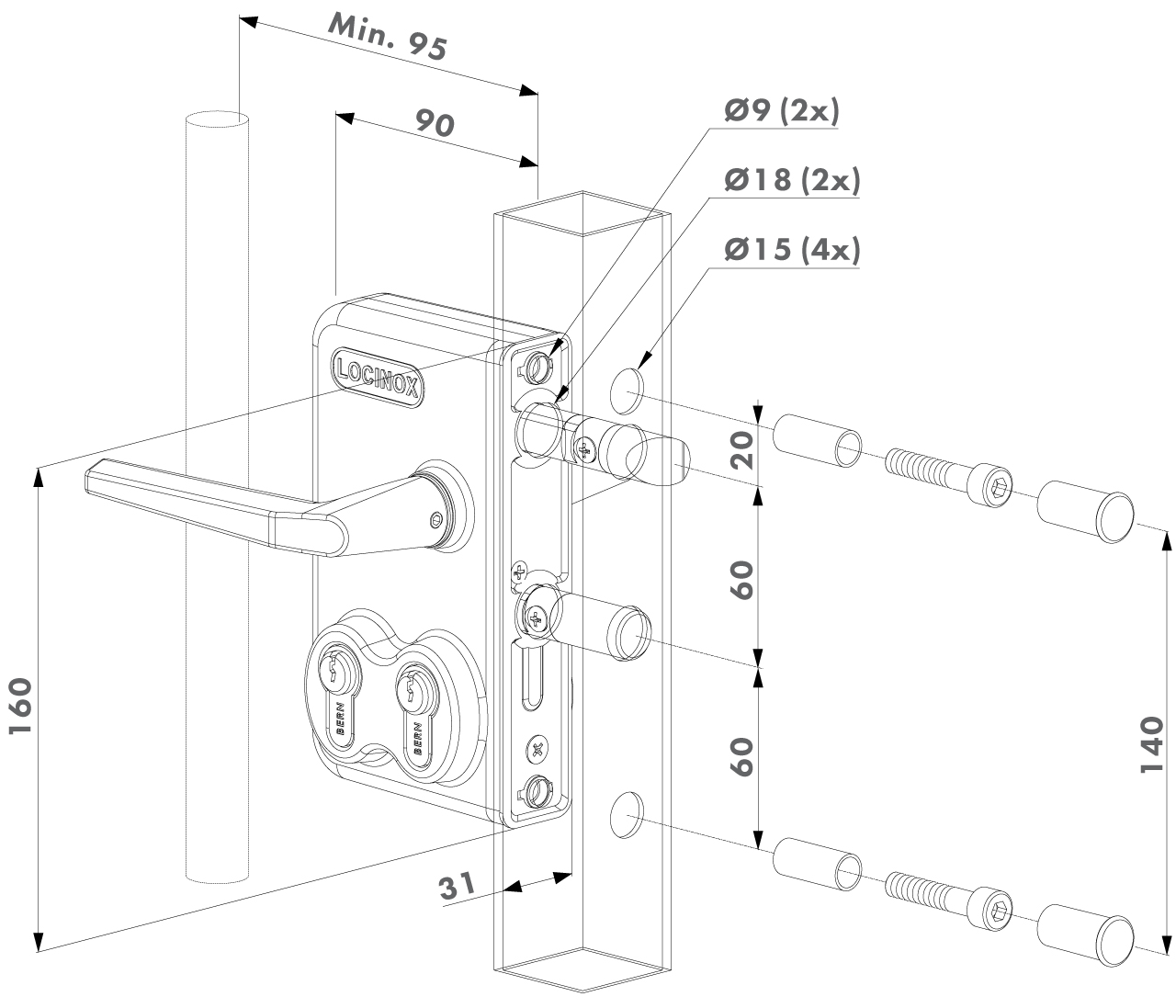

Διαστάσεις & Σχέδια
