Product Information
Category: R23 Series
Πληροφορίες
R23/371 (Διαθέσιμο Κατόπιν Παραγγελίας)
Electromechanical articulated motor 230V AC irreversible ideal for swing gates with leaf up to 3,5m of length. With mechanical limit switch without articulated arms.
230V AC
Residential Use
Industrial
Commercial
Τεχνικές Προδιαγραφές
| Power line supply: | 230V AC – 50Hz |
| Motor power supply: | 230V AC |
| Power rating: | 200W |
| Frequency of use: | 50% |
| Torque: | 400 N m |
| Operating temperature: | -20+55° C |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 1,5 Rpm |
| Opening time: | 14 s |
| Motor thermal protection: | 150° C |
| Incorporated condenser: | 10 µF |
| Limit switch: | Microswitch in opening and closing |
| Encoder: | – |
| Maximum dimension product in mm (L x W x H): | 355 x 190 x 160 |
| Product weight packed (Kg): | 13,5 |
| Number items per pallet: | 48 |
Διαστάσεις & Predisposition
Predisposition for LT303 installation
Predisposition for standard installation
Dimensions with LT303
Dimensions
Standard Αξεσουάρ
KT218 Gate pull bracket for series articulated.
KT208 Plate for fixing to post R23 series.
Επιπλέον Αξεσουάρ

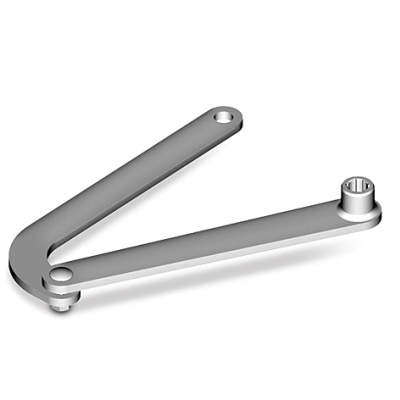

LT302 Arms short for articulated motor.

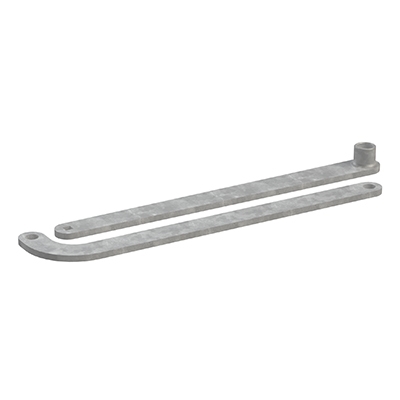

LT303 Arms long for articulated motor.

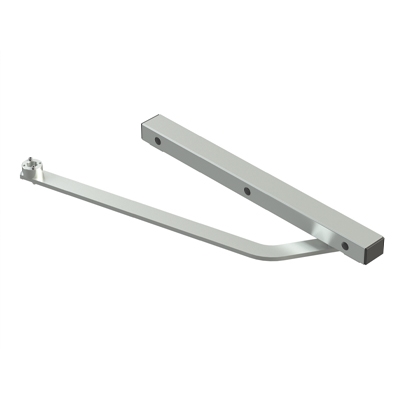

LT338 Arms with articulated slide.
R99/C/001AL Signboard “Automatic Opening” Aluminium version.
R99/C/001 Signboard “Automatic Opening”.
