Πληροφορίες
Electromechanical motor 230V AC irreversible ideal for sliding gates up to 1200Kg with built-in control unit H70, optical encoder and magnetic limit switch.
Optical Encoder
Mechanic switch
230V AC
Commercial
Industrial
Τεχνικές Προδιαγραφές
| Max gate weight: | 1200 kg |
| Power line supply: | 230V AC – 50Hz |
| Motor power supply: | 230V AC |
| Power rating: | 420W |
| Frequency of use: | 50% |
| Thrust: | 800N |
| Operating temperature: | -20+55°C |
| Protection level: | IP44 |
| Reductor Type: | Irreversible |
| Manoeuvre speed: | 9.5 m/min (0.16 m/s) |
| Motor thermal protection: | 150°C |
| Incorporated condenser: | 18 µF |
| Limit switch: | Magnetic |
| Onboard control unit: | H70/104AC |
| Encoder: | Optical |
| Type exit gear: | Z17/mod 4 |
| Maximum dimension product in mm (L x W x H): | 325 x 162 x 294 |
| Product weight packed (Kg): | 16,7 |
| Number items per pallet: | 44 |
Διαστάσεις & Predisposition
Dimensions
Standard Αξεσουάρ
KT210 Fixing plate with stay bolts and screws H30 series.
KT210 Fixing plate with stay bolts and screws for R30 series.
Επιπλέον Αξεσουάρ
GA550 Galvanised steel rack 22x22x1000 module 4

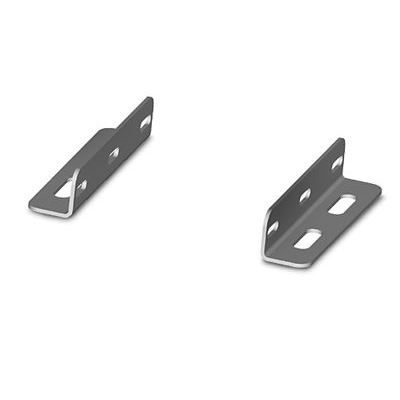

KT211 Pair of side angles bars complete with screws.
GA551 Galvanised steel rack 30x12x1000 module 4 with spacers and screws.
GA554 Pocket of 6 spacers (2,5 cm) and screws.
KT212 Raised fixing plate for R30 series (+3,5 cm).
LT328 Pinion Z17 mod. 4 with increased thickness H.38 for series R30 – G30 – E30 (except BG30/1504/HS).
R99/C/001 Signboard “Automatic Opening”.
R99/C/001AL Signboard “Automatic Opening” Aluminium version.
